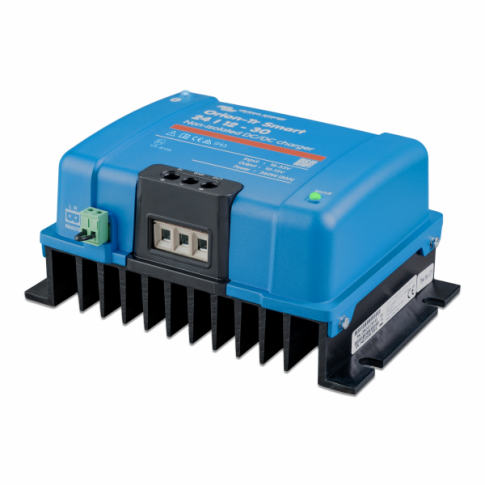

Victron Orion Smart 30A 24V DC to 12V DC automatic multi-stage intelligent batte

DC to DC battery charger and converter for fast charging of a 12V battery / battery bank from a 24V battery / battery bank with its own energy source or converting a DC input to a stable DC output at a set voltage. Featuring Bluetooth connectivity for monitoring and changing settings from your mobile device.

Photonic Universe is an official distributor of products from Victron Energy - the globally renowned manufacturer of high quality hybrid power electronics. Victron Energy chargers have a longstanding reputation for their outstanding reliability, innovative design and superior build quality.

Function:

This intelligent battery charger is designed to automatically charge a 12V battery / battery bank from a 24V battery / battery bank with its own energy source. For example, if a 24V battery / battery bank is being regularly charged by solar / mains / alternator, this 30A DC-to-DC battery charger can pull energy from this battery bank to charge a 12V target battery / battery bank. The target battery / bank will be charged at a maximum of 30A, using an intelligent multi-stage approach with full overcharge protection.

This compact and lightweight battery to battery charger can be easily integrated or retrofitted into any system, allowing the user to transform a single battery system into a dual battery charging system. For example, in a vehicle or boat this charger can take energy from the engine starter battery (which is constantly topped up by the alternator) to charge a leisure or auxiliary battery / bank.

In a solar charging system, the charger allows easy conversion from a single battery solar charging kit to a dual battery charging kit, without the need to upgrade the single battery solar charge controller to a dual battery model. This is perfect for systems with a high solar input, where a suitable dual battery solar charge controller is expensive or difficult to procure.

The Orion Smart charger can also operate in a DC conversion mode, where the output power will be adjusted to a stable voltage with minimal electrical noise. This allows the running of sensitive DC equipment from a battery or other DC power source which may change voltage during charging or use.

Key features:

Bluetooth connectivity: inbuilt Bluetooth feature allows the charging process to be monitored and settings to be changed at any time using the VictronConnect App, without having to access the installation location.

Safe unattended charging: the unit features inbuilt safety functions (protection against overload, overheating, overvoltage, short circuit, and reverse discharge of the battery), which allow the charger to be left permanently connected to the source battery for unattended automatic charging.

Continued charging during battery/load use: the charger will continue to operate at full power whilst energy is drawn from the battery during use. The unit will maintain the charge if the battery is already at full capacity. Any 12V loads may also be left permanently connected and running whilst the DC-to-DC charger is in operation, and will be protected against overvoltage and voltage fluctuations.

Compatible with other charging sources: thanks to the inbuilt suppression filter, the batteries may be charged from alternative power sources, for example solar panels / petrol generators etc., whilst remaining connected to the battery charger.

Remote on/off control: using a hard-wired switch, external relay control or the Victron Connect app, the charger can manually be turned on or off. This allows for greater control over when the charger activates, or automatic control by a Battery Management System.

Vehicle battery optimisation: specifically designed with efficient vehicle battery charging in mind. Unlike other chargers (or split charge relays) which do not instantly charge the battery at full current whilst driving and do not provide overcharge protection, this unit will automatically charge at full power, even during short journeys, with full protection from overcharging the target battery. This charger is also well suited to vehicles of Euro 6 emission standard and above, as it prevents the reduced or intermittent charging associated with smart alternators in these vehicles.

System upgrade potential: this unit may be connected in parallel to an identical model in order to boost the charging capacity of the system. This is an ideal option for large battery systems, or those with powerful 12V appliances running directly from the batteries. A second unit may be added at any time for future system expansion.

Additional features:

This charger also features LED indicators to show target battery charging stage and Bluetooth connectivity status.

Compatibility:

This DC-to-DC battery charger is suitable for use with any 12V and 24V lead acid or lithium batteries. It cannot be used to charge 24V batteries from a 12V or 24V battery bank.

Click on the 'Details and Specifications' tab for more information about this product.
-

-

-
Specifications:

-

-
Input
- voltage: 20
- 35 V

-
Output current: 0
- 30A

-
Battery types: suitable for any type of 24V / 12V lead acid
- or lithium battery

-
Under voltage shutdown: 14V

-
Under voltage restart: 15V

-
Output voltage adjustable range: 10
- 15V (12.2V nominal)

-
Output voltage tolerance: +/
- 0.2V

-
Output noise: 2mV RMS

-
Cont. output power at 25°
- C: 430W

-
Cont. output power at 40°
- C: 360W

-
No load consumption: <
- 100mA

-
Standby consumption: <

£209.00
