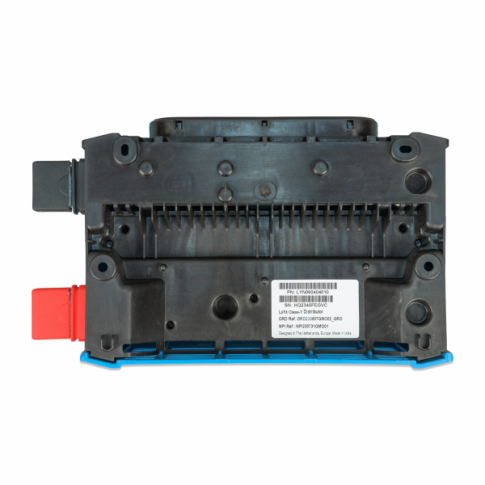

Victron Energy Lynx Class-T Power In DC busbar 1000A M10 terminals 12V/24V/48V
The Lynx Class-T Power In is a modular DC busbar which contains a positive and negative busbar with connections for 2 Class-T fuses, and a ground connection.
Photonic Universe is an official distributor of products from Victron Energy - the globally renowned manufacturer of high quality hybrid power charging solutions. Victron Energy products and accessories have a longstanding reputation for their outstanding reliability, innovative design and superior build quality.
This Victron Energy Lynx Class-T Power In, part of the Lynx distribution system, is a modular DC busbar unit made up of a positive and a negative busbar with a nominal current rating of 1000A, featuring connections for two Class-T fuses, and a ground connection. The Class-T fuses are available in 225A, 250A, 350A, and 400A are not included and are sold separately.
The Lynx Class-T Power In is an ideal solution to connect and fuse up to two strings of Lithium batteries. For installations using three or more strings of Lithium batteries then multiple Lynx Class-T Power In can be used. The module can be used by itself or in combination with other Lynx M10 distribution system modules (not included) such as:
Click on the Details and Specifications tab for more information.
- -
-
-Technical Specifications:
-- Voltage range: 9
- 60Vdc - Supported system voltages: 12
- 24 or 48V - Current rating: 1000A
- Busbar connection: M10
- Enclosure dimensions: 279 x 169 x 97 mm
- Unit weight: 2.1 kg
- Busbar material: Tinned copper
- Operating / storage temperature:
- 40°
- C to +60°
- C - Humidity: Max. 95% (non
- condensing) - Protection class: IP20
-
-
-
-
-
-
-
-
-
-
-
-
-
-This product is covered by a
- 5 year manufacturer warranty. For more information please refer to our - Voltage range: 9
If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see our Contact Us page for more information).
The following documents are available to download:
User manual for Victron Lynx Class-T Power In with M10 terminals (VLYNXCTPI-M10)
Dimension drawing for Victron Class-T Lynx Power In with M10 terminals (VLYNXCTPI-M10)
