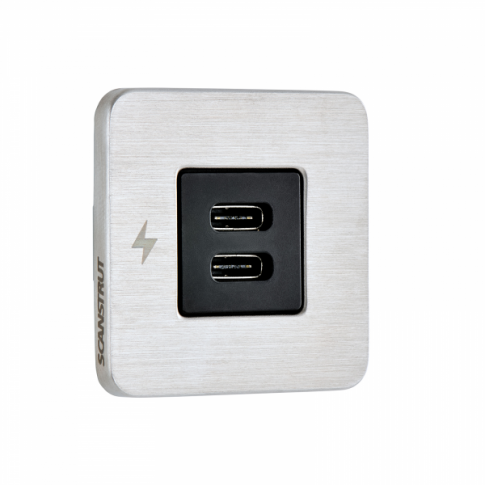

Scanstrut SC-TILE-21 Dual USB-C Interiors Charging Socket 12V/24V - Stainless
The Scanstrut SC-TILE-21 is a discreet, dual USB-C interior charging socket with a sleek stainless steel bezel. Delivering up to 36W on 12V or 60W on 24V systems, it’s ideal for powering laptops, tablets, and smartphones in marine and campervan interiors.
The Scanstrut SC-TILE-21 delivers discreet, high-speed dual USB-C charging in an ultra-low-profile design—ideal for upgrading modern marine interiors. With twin USB-C ports delivering up to 36W on 12V systems and 60W on 24V systems, it’s powerful enough to charge two laptops, tablets, or smartphones simultaneously.
Designed to blend seamlessly into luxury interiors, the SC-TILE-21 features a sleek stainless steel bezel and a compact 40mm footprint. Its front-fit installation makes upgrading quick and easy, while conformal-coated electronics add extra protection against interior moisture. A stylish and practical charging solution, purpose-built for onboard living spaces.
Please Note: TILE Series chargers are designed for interior use only and must not be installed in areas exposed to water.
Key Features
- Dual USB-C Ports – 2 × USB-C (up to 60W max each on 24V)
- Ultra-Fast Charging – Perfect for laptops, tablets, and smartphones
- Discreet Design – Ultra-low-profile bezel with a compact 40mm footprint
- Easy Installation – Fits a standard 29mm cut-out, front-fit mounting
- Interior Ready – Conformal-coated electronics for moisture resistance
- Modern Finish – Sleek stainless steel bezel (black option also available)
- Universal Compatibility – Works with all USB-C powered devices, charging two at once
What’s Included
- 1 × Scanstrut SC-TILE-21 Dual USB-C Charger (Stainless Steel Bezel)
- Mounting hardware
- Installation instructions
Applications
- USB-C laptops & ultrabooks
- Tablets & smartphones (iPad, iPhone, Android)
- Marine interior cabins & saloons
- Campervan & RV interiors
Click on the Details and Specification tabs for more information.
- Specifications
- Input Voltage: 10–32V DC (12V/24V systems)
- USB-C Output (12V System): 36W max (5V⎓3A, 9V⎓3A, 12V⎓3A)
- USB-C Output (24V System): 60W max (5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3A)
- Max Input Current: 6A (10A fuse recommended)
- Standby Power Draw: 0.01W
- Certifications: CE, FCC, UKCA, C-Tick, ROHS, WEEPlease follow the installation instructions in the Documents tab.
- Installation instructions for the SC-TILE-21
- Technical drawing of the SC-TILE-21
