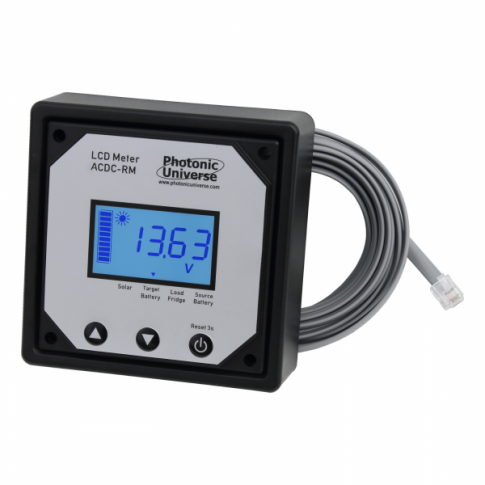

Remote LCD meter for mains chargers, DC-DC chargers, or solar charge
Remote meter / display with 3m cable for mains battery chargers, DC to DC battery chargers or solar charge controllers
This high-quality remote LCD meter is suitable for mains chargers, DC-DC chargers, or solar charge controllers . This unit is ideal for remote system monitoring as it allows for complete viewing of the charging process, and the three buttons on the front allow for easy transition between parameters.
This remote meter displays the following charging parameters
- Source battery voltage (V)
- Target battery voltage (V) current (A), accumulated energy (Wh) and charge (Ah)
- Solar panel power (W) and voltage (V)
- Load voltage (V) and current (A)
Compatibility
This remote meter can be used with the following products
- BCxxxxPRO series mains chargers
- DCxxxx-xx, DCxxxx-xxS and DCxxxx-xxxx series DC-to-DC chargers
- PMPPT series dual battery MPPT solar charge controllers
Click on the Details and Specifcations tab for more information
- Specifications
- Work voltage of the charger: 12V / 24V / 36V / 48V
- Voltage range: 8 - 32V
- Work current: 3 - 30mA
- Measured charging power range: 20 - 9999Wp
- Backlight: LED
- Communication cable: RJ45 (8pin) 3 meters included
- LCD display area size: 49 x 28 mm
- Size: 110 x 110 x 40 mm
- Weight: 75 g (without cable)This unit comes with a detailed user manual which explains installation and operations (see Documents tab).
- User manual for remote LCD meter (ACDC-RM)
