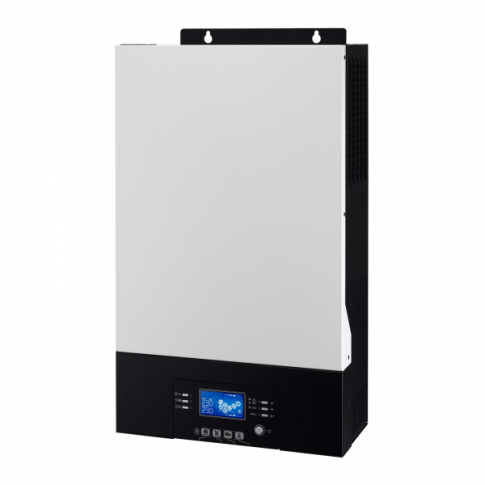

5kW Zero-Transfer Uninterrupted Power Supply (UPS) System with 9.6kWh energy sto
UPS battery back-up system for applications requiring a constant, uninterrupted power supply. Includes a 5000W 48V hybrid inverter with zero-transfer time, 4 x 200Ah gel deep-cycle batteries and connection cables.
This Photonic Universe Uninterrupted Power Supply (UPS) system is suitable for both mains-powered and off-grid applications where a stable and reliable source of AC power is required. Ideal for running household appliances, IT and computer rooms, servers, commercial or other large electronic equipment.
In a mains-powered setup, the system ensures that the AC appliances are not interrupted even if the mains electricity is unstable, intermittent or the power is suddenly cut off. While the mains power is available, the system links it to the AC output to power connected appliances whilst simultaneously charging the batteries, or keeping them topped up. If the mains power is suddenly cut off, the system instantly transfers the power input to the batteries and starts drawing energy from them so that the load work is not interrupted. When the mains AC input power becomes available again, the system transfers the input to mains AC power.
Zero transfer technology allows for instant switching from mains to battery backup power, without the typical delay of 10-20ms. This UPS is ideal for sensitive electronics where a consistent power supply is required, such as computers, servers, equipment in datacentres and other IT equipment.
For off-grid systems with a generator, this UPS system can allow for continual power even when the generator is turned off. This allows users to achieve significant savings of fuel costs by only running the generator periodically - at the optimal power levels to charge the batteries.
The system can also be used for portable power applications, i.e. when the batteries are charged in a location with mains electricity, and the system is then transported to a different off-grid location to provide power on demand on a temporary basis.
This UPS system also supports solar power input with no additional charge control equipment required. Users can simply connect a suitable solar array to the inverter to start charging from solar power to save on electricity bills for mains connected systems, or in order to run a generator less frequently for off-grid systems.
The system can be easily expanded to generate up to 45kW of continuous power, by connecting 9 inverters in parallel (additional parallel kits required, one per inverter). The external battery bank allows for easy expansion or replacement, as well as straight-forward installation in irregular locations.
This package includes the main UPS unit, 4 x 200Ah gel deep-cycle batteries, 1m tinned copper battery cables, battery linking cables, a thermal over-current circuit breaker and loose ring terminals for crimping.
Please note: the inverter uses predictive cooling logic to activate the fans, and is not suitable for installing in locations where silence is required.
Click on the Details and Specifications tab for more information about this kit.
- -
-
-UPS
- specifications:
-- Nominal battery voltage: 48V
- Continuous power output: 5000W/5000VA (220
- 240V AC) - Surge power: 10000VA
- Output frequency: 50Hz
- 60Hz - Output waveform: Pure sine wave
- Maximum solar input power: 4000W
- Maximum open circuit solar input voltage: 145V (open circuit)
- MPPT operating solar voltage: 60
- 115 V - Maximum solar charging current: 80A
- Maximum mains AC charging current: 60A
- Maximum combined charging current: 140A
- Peak efficiency: 93%
- Solar / AC charger max efficiency: 98%
- Operating temperature: 0°
- C to 55°
- C - Supplied with USB drive
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Please note: this UPS system uses an off-grid inverter. Any other AC power sources, including mains, can only be connected to the inverter input AC terminals, and should be fully isolated from the inverter output AC terminals. If the AC output of this inverter comes into contact with another source of AC power, the inverter will be damaged.
If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see Contact Us page for more information).
The following documents are available to download:
User manual for IC-ZT5000-48 hybrid power inverter
User manual for 'WatchPower' PC software for Iconica IC-ZT5000-48
