250A 12V/24V/48V Automatic over-current DC circuit breaker
250A circuit breaker for DC systems to protect against over-current.

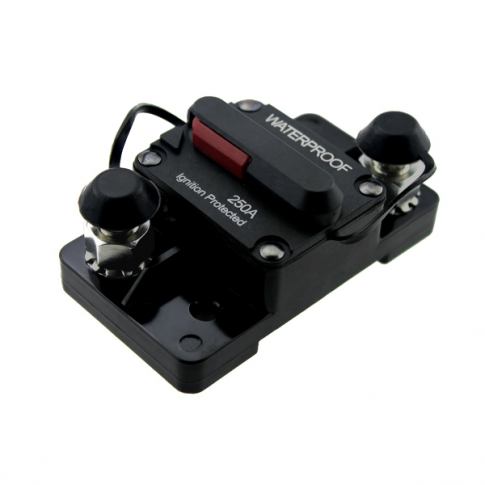

This 250A circuit breaker acts as a resettable 250A fuse. It is ideal for any DC system that requires over-current protection. The breaker is suitable for a wide range of DC system voltages from 12V to 48V.
Like any fuse, this circuit breaker is designed to protect the system from over-current as a result of high power draw, short-circuits, wiring mistakes, equipment faults or any other high current event. The circuit breaker is resettable which makes it a superior alternative to fuses which require replacement when blown.
The circuit breaker is made from strong thermal plastic engineered to withstand high temperatures (UL94V-0 rated). The breaker is also water resistant (IP67 rated) and ignition protected (meets international standards S.A.E. J1625, J1171, UL1500).
This product is suitable for a wide range of DC applications including:
- Between off-grid inverter DC input and batteries;
- DC power distribution or charging circuits;
- Other DC automotive and marine applications.
Click on the Details and Specifications tab for more information.
- -
-
-Circuit breaker specifications:
-- Rating: 250A
- Type: Thermal overcurrent protection device
- Material: Thermal Plastic (UL rated 94V
- 0) - Operating temperature:
- 32C to 82C - Storage temperature:
- 34C to 149C - Terminals size: M10
- Enclosure: IP67
- Size :
- 86 x 48 x 37 mm - Weight :
- 138g - Waterproof rating: IP67
- International standard ratings (S.A.E. J1625
-
-
-
-
-
-
-
-
-
-
-
Please note that this circuit breaker is intended for surface mounting.
The following documents are available to download:
Time vs Rated Current graph for Photonic Universe 250A Circuit breaker (CB250)

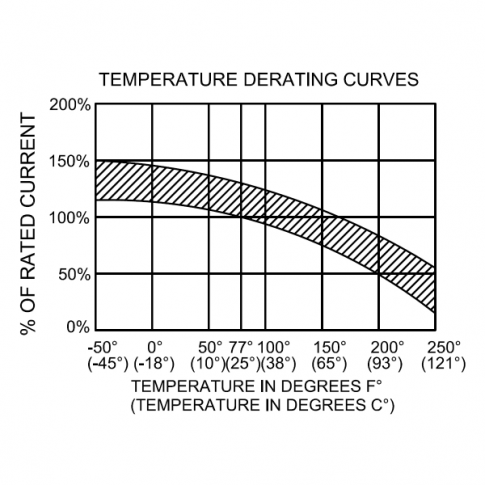

Temperature derating graph for Photonic Universe 250A Circuit breaker (CB250)
