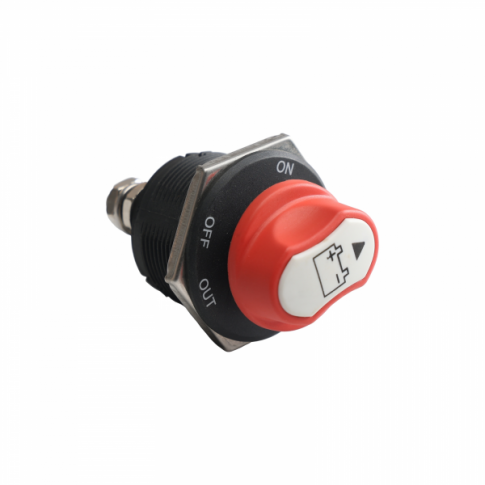

200A 12V/24V/48V panel mount battery isolator switch with M8 terminals
Manual 200A DC switch-disconnector for isolation of battery input from the rest of the system. Features M8 screw terminals.
This high-quality 200A 12V/24V/48V manual battery isolator switch enables quick and reliable isolation of the battery input from the rest of the system. Available switch positions are ON, OFF and OUT and these positions are marked on the switch bezel.
When in the "ON" position the battery, will be connected to the system, in the "OFF" position, the battery will be disconnected from the system, and when in the “OUT” position, the switch can be removed, preventing any chance of the battery being accidentally reconnected during maintenance.
Designed and manufactured to the highest quality standards, this unit is an ideal solution for easy-to-reach disconnection of your battery power supply from the inverter/regulator. Additionally, the unit features M8 screw terminals for ease of installation.
Click on the Details and Specifications tab for more information
- -
-
-Specifications:
-- Screw terminals: M8
- Rated current: 200A
- Dimensions: 45 x 60.6 x 35.1 mm
-
-
-
-
-
- This product is covered by a 1
- year manufacturer warranty. For more information please refer to our Terms and Conditions.
If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see Contact Us page for more information).
