1kW complete van conversion kit with 200W semi-flexible solar panel, 100Ah 12V b



This complete off-grid van conversion kit has been expertly designed to maximise efficiency and output and therefore comes equipped with some of our most premium quality products; including a 200W black fibreglass reinforced solar panel and a 20A solar charge controller designed and produced in Italy by one of the leading European solar technology manufacturers, in accordance with the highest quality standards.

In addition, this kit is supplied with a 100Ah 12V battery, a 1000W 230V pure sine wave inverter and connection cables. This van kit is an easily installed system for personal or commercial use. It can provide power to small appliances such as a TV, radio, lights, computer, laptop, printer or a low power kettle. This may vary significantly according to location and season.

Kit includes:

• 200W black semi-flexible fibreglass solar panel with durable ETFE coating and 2 x 1m solar cable and T4 connectors


• 20A 12V/24V solar charge controller with LCD display


• 1000W 230V pure sine wave inverter


• 100Ah AGM deep cycle leisure battery


• Automatic circuit breaker


• A pair of 5m 4mm² solar extension cables with T4 connectors


• 5m of 4mm² dual core battery extension cable with a 15A fuse


• A pair of T4 solar connectors


• A waterproof double entry cable gland


• Loose ring terminals



200W black semi-flexible fibreglass solar panel with durable ETFE coating:

The high efficiency, waterproof 200W fibreglass reinforced solar panel included in the kit features innovative 9-busbar solar cells to maximise efficiency and output. The panel is fitted with 2 x 1m of 4mm² cable with T4 connectors on the end. These can be used for easy connection to the 5m solar extension cable included with the kit.

This panel boasts a robust construction using plastic reinforced with glass fibre which creates a sturdy and durable solar panel, as well as a special textured surface that significantly reduces light reflection and improves performance in low light and cloudy conditions. The panel is easily installed with no drilling required and the highly flexible design makes this panel ideal for curved roofs, pop tops, and other surfaces where bonding is preferable for a sleek and modern finish (though it can also be fixed by bolts or screws).

This solar panel has a unique black backing, making this solar panel ideal for discreet and aesthetically pleasing installation on dark coloured roofs, vehicles or mounting surfaces. Please note that this solar panel is not 'ultra jet-black' - the exact hue may vary marginally from panel to panel, depending on the batch of solar cells.

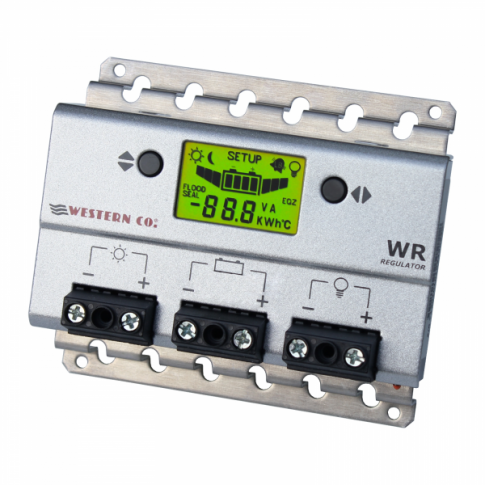

20A 12V/24V solar charge controller:

This controller has been 100% designed and produced in Italy by one of the leading European solar technology manufacturers, in accordance with the highest quality standards and includes a superior 5-year manufacturer warranty. This solar charge controller uses PWM (Pulse Width Modulation) technology to improve charge acceptance and extend the life of your battery. PWM technology can also recover some lost battery capacity. The controller features a LCD display which shows advanced system information including: power, voltage and current for the solar panels and battery, energy counter, temperature, and load work.

This unit is compatible with sealed, GEL and flooded lead acid batteries. It has pre-set charging programmes for different battery types, and battery low voltage protection can be also configured according to your requirements. Load working modes can be programmed for many different applications; for example to set on/off timers for lighting/fans/pumps.

1000W 230V pure sine wave inverter:

This 1000W 230V pure sine wave inverter converts battery output (DC, or direct current) into 230V AC mains electricity (alternating current). 230V AC is the type of electricity supplied by utility companies to run standard domestic appliances such as a TV, fridge, radio, lights etc.

This is a pure sine wave type of inverter, which means that the 230V AC output harmonically follows a smooth sine wave and is almost identical to normal mains electricity. Pure sine wave output is far superior than square sine wave or modified sine wave output for running appliances.

In addition, the inverter has a USB port for powering USB-compatible devices (e.g. mobile phones, tablets, laptops, MP3 players etc.) and is also supplied with a wireless On/Off remote control (max. 50m radius).

100Ah AGM deep cycle leisure battery:

Our AGM deep-cycle batteries are non-spillable, completely sealed, and maintenance free - amongst the very safest batteries you can find. They have a much longer service life compared to standard wet-cell batteries due to lower degradation and corrosion inside the battery. AGM batteries hold charge very well and have a low self-discharge rate.

Additional items:

This kit also includes 5m 4mm² dual core battery extension cable with a 15A fuse and loose ring terminals for connecting the charge controller to the battery, an automatic circuit breaker for use between the inverter and the batteries, and 5m 4mm² solar extension cable with T4 connectors and double cable entry gland to connect to the existing 1m of solar cable fitted to the solar panel to the charge controller through the roof of the van.



Click on the Details and Specifications tab for more information about this kit.

-


-

-

Solar panel specifications:

-

-
• Peak power: 200W

-
• Maximum power voltage: 17.6V

-
• Maximum power current: 11.36A

-
• Open circuit voltage: 20.8V

-
• Short circuit current: 12.05A

-
• Dimensions: 1420 x 710 x 3mm

-
• Weight: 3.65 kg

-

-


-

-

20A 12V/24V solar charge controller specifications:

-

-
• Fully automated operation and auto 12V/24V selection

-
• Rated charging and load current: 20A

-
• Enhanced monitoring and charging / load work control

-
• Maximum solar panel input voltage 55V

-
• 3 pairs of terminals (input
  - battery
  - load) for wire up to 10mm2

-
• Temperature sensor: built in

-
• Full set of electronic protection functions



We can offer a detailed wiring diagram and full technical support for installations and settings upon request.

If you are unsure as to whether 1000W output power is sufficient for your appliances, please refer to our table of typical power consumption of domestic appliances.

If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see Contact Us page for more information).





The following documents are available to download:

Technical drawing of 200W black fibreglass semi-flexible solar panel FLPROCB-200M

Handling and installation manual for Photonic Universe FLPROC semi-flexible solar panels

User manual for 20A 12 / 24V solar charge controller (WREG20)

User manual for 1000W 12V pure sine wave inverter with wireless remote control (IPR-1000)
