1.5kW complete van conversion kit with 2 x 150W black narrow semi-flexible

This complete off-grid van conversion kit has been expertly designed to maximise efficiency and output and therefore comes equipped with some of our most premium quality products; including 2 x 150W fibreglass reinforced solar panel and a 30A solar charge controller designed and produced in Italy by one of the leading European solar technology manufacturers, in accordance with the highest quality standards.

In addition to the strong solar panel input of 300W, this kit is supplied with a 200Ah 12V battery, a 1500W 230V pure sine wave inverter and connection cables . This van kit is an easily installed system for personal or commercial use. It can provide power to small appliances such as a TV, radio, lights, computer, laptop, printer or a low power kettle. This may vary significantly according to location and season.

Kit includes

- 2 x 150W black narrow semi-flexible fibreglass solar panels each with durable ETFE coating and 2 x 1m solar cable and T4 connectors

- 30A 12V/24V solar charge controller with LCD display

- 1500W 230V pure sine wave inverter

- 200Ah Gel deep cycle leisure battery

- Automatic circuit breaker

- A pair of 5m 6mm² solar extension cables with T4 connectors

- 5m of 6mm² dual core battery extension cable with a 20A fuse

- A pair of T4 T-branch solar connectors

- A waterproof double entry cable gland

- Loose ring terminals

2 x 150W black narrow semi-flexible fibreglass solar panel with durable ETFE coating

The two high efficiency, waterproof 150W black narrow fibreglass reinforced solar panels included in the kit features innovative 5-busbar solar cells to maximise efficiency and output. The panel is fitted with 2 x 1m of 4mm² cable with T4 connectors on the end. These can be used for easy connection to the 5m solar extension cable included with the kit. The unique narrow shape is ideal for applications where space is restricted, or where there are obstructions on the roof (only 510mm wide).

This panel boasts a robust construction using plastic reinforced with glass fibre which creates a sturdy and durable solar panel, as well as a special textured surface that significantly reduces light reflection and improves performance in low light and cloudy conditions. The panel is easily installed with no drilling required and the highly flexible design makes this panel ideal for curved roofs, pop tops, and other surfaces where bonding is preferable for a sleek and modern finish (though it can also be fixed by bolts or screws).

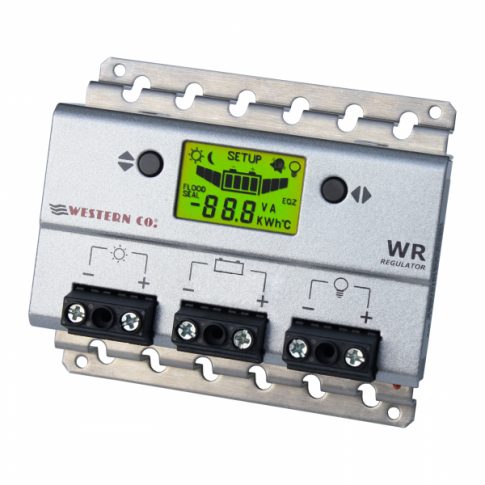

30A 12V/24V solar charge controller

This controller has been 100% designed and produced in Italy by one of the leading European solar technology manufacturers, in accordance with the highest quality standards and includes a superior 5-year manufacturer warranty . This solar charge controller uses PWM (Pulse Width Modulation) technology to improve charge acceptance and extend the life of your battery. PWM technology can also recover some lost battery capacity. The controller features a LCD display which shows advanced system information including: power, voltage and current for the solar panels and battery, energy counter, temperature, and load work.

This unit is compatible with sealed, GEL and flooded lead acid batteries. It has pre-set charging programmes for different battery types, and battery low voltage protection can be also configured according to your requirements. Load working modes can be programmed for many different applications; for example to set on/off timers for lighting/fans/pumps.

1500W 230V pure sine wave inverter

This 1500W 230V pure sine wave inverter converts battery output (DC, or direct current) into 230V AC mains electricity (alternating current). 230V AC is the type of electricity supplied by utility companies to run standard domestic appliances such as a TV, fridge, radio, lights etc.

This is a pure sine wave type of inverter, which means that the 230V AC output harmonically follows a smooth sine wave and is almost identical to normal mains electricity. Pure sine wave output is far superior than square sine wave or modified sine wave output for running appliances.

In addition, the inverter has a USB port for powering USB-compatible devices (e.g. mobile phones, tablets, laptops, MP3 players etc.) and is also supplied with a wireless On/Off remote control (max. 50m radius).

200Ah Gel deep cycle leisure battery

The Gel deep-cycle battery is non-spillable, completely sealed, and maintenance free - amongst the very safest batteries you can find. It has a much longer service life compared to standard wet-cell batteries due to less degradation and corrosion inside the battery. This Gel battery can hold charge very well and has a much lower self-discharge rate.

Additional items

This kit also includes 5m 6mm² dual core battery extension cable with a 20A fuse and loose ring terminals for connecting the charge controller to the battery, an automatic circuit breaker for use between the inverter and the batteries, and 5m 6mm² solar extension cable with T4 connectors and double cable entry gland to connect to the existing 1m of solar cable fitted to the solar panel to the charge controller through the roof of the van.

- Solar panel specifications (per solar panel)
- Peak power: 150W
- Maximum power voltage: 18.8V
- Maximum power current: 7.98A
- Open circuit voltage: 22.0V
- Short circuit current: 8.38A
- Dimensions: 1550 x 510 x 3 mm
- Weight: 2.55 kg
- 30A 12V/24V solar charge controller specifications
- Fully automated operation and auto 12V/24V selection
- Rated charging and load current: 30A
- Enhanced monitoring and charging / load work control
- Maximum solar panel input voltage 55V
- 3 pairs of terminals (input, battery, load) for wire up to 10mm2
- Temperature sensor: built in
- Full set of electronic protection functions
- Self-consumption: 8mA
- Working temperature: -10°C to +60°C
- Size: 15 x 12 x 5 cm
- Weight: 500 g
- Multiple mounting holes for ease of installation
- 1500W 230V pure sine wave inverter specifications
- Input: 12V (10-15V) DC
- Output: 230-240V AC
- Output frequency: 50 Hz
- Output waveform: pure sine wave
- THD: < 3%
- Continuous power: 1500W
- Surge power: 3000W
- Peak efficiency: 90%
- Low battery shut down: 10.0V +/- 0.5V DC
- Low battery alarm: 10.5V +/- 0.5V DC
- High voltage shut down: 15.5V +/- 0.5V DC
- Thermal shut down: 60 +/-5°C
- Rated USB output: 2A
- Wireless remote control radius: Approx. 50m
- Size: 405 x 220 x 90 mm
- Weight: 4.4 kg
- Battery specifications
- Nominal voltage: 12V
- Nominal capacity: 200Ah (10h rate) / 205Ah (20h rate)
- Maximum charging current: 40A
- Self-discharging rate: <1% per month
- Cycle lifetime at 30% D.O.D.: 1200-1300
- Pressure control: safety valve installed
- Terminal type: F24 (bolts and washers included)
- Operating temperature: from -10°C to +50°C
- Size: 523 x 239 x 243 mm
- Weight: 61.5 kg
- Please note: due to our warehouse arrangements, the kit accessories may be shipped from a different warehouse to the solar panel, charge controller, inverter, and batteries, and therefore delivered in a separate package.
- For installation advice, please click on the Installation tab.

We can offer a detailed wiring diagram and full technical support for installations and settings upon request.

If you are unsure as to whether 1500W output power is sufficient for your appliances, please refer to our table of typical power consumption of domestic appliances .

- Technical drawing of black 150W narrow fibreglass semi-flexible solar panel FLAXSLB2-150M
- Handling and installation manual for FLAX semi-flexible solar panels
- User manual for 30A 12 / 24V solar charge controller (WREG30)
- User manual for 1500W 12V pure sine wave inverter with wireless remote control (IPR-1500)
- User Manual for 12V 200AH Gel Battery (GEL200AH)
